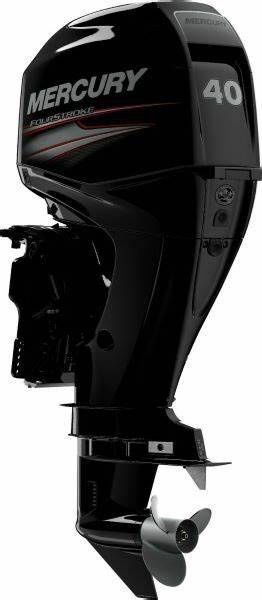

Mercury 40hp ELHPT

40 Tiller Electric Start Power Tilt

ENGINE DETAILS

Mercury EFI outboards deliver reliable turnkey starts, improved fuel efficiency, and instant throttle response. Great for aluminum tiller, aluminum console, inflatable rigid hull (RIB) and soft hull, watersports, and fish & ski boats.

SPECIFICATIONS - 40 EFI

HP / kW • 40 / 30

Engine type • Inline 3

Displacement (CID/CC) • 45.6 / 747

Full throttle RPM • 5500-6000

Fuel induction system • 2 valves per cylinder, single overhead cam (SOHC)

Alternator amp / Watt • 18 amp / 226 watt

Recommended fuel • 87 octane / up to 10% ethanol

Recommended oil • Mercury FourStroke 25W40 Marine Oil

Engine protection operator warning system • Low oil pressure

• Over-rev

• Overheat

Compatible with SmartCraft digital technology • Yes

Starting • Electric (turn-key)

Steering • Big Tiller Compatible

• Remote

• Tiller Kit

Shaft length • 15" / 381 mm

• 20" / 508 mm

Gearcase ratio • 2.00:1

Dry weight *Lightest model available • 216 lbs / 98 kg

Emissions Star Rating • 3

Bore and stroke • 2.56 x 2.95" / 65 x 75 mm

Ignition • ECM 70

Fuel system • Electronic Fuel Injection (EFI)

Cooling system • Water-cooled with thermostat

Gear shift • F-N-R

Gearcase options • Standard

Trim system • Gas assist

• Power Tilt

• Power Trim

Exhaust system • Through prop

Shallow water trim range (degrees) • 20

Remote fuel tank (optional) • Yes

Color • Phantom Black
