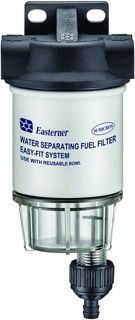

Fuel Filter Kit Nano

Complete Easy-Fit compact fuel filter kit

A very compact Easy-Fit mini fuel filter that suits outboard motors up to 70HP and fits into very tight locations with its compact filter head that is only 80mm wide (excluding hose barbs) & 77mm deep.

Complete water separating fuel filter with clear easy-viewing bowl with screw plug drain and 10 micron spin-on filter element. Glass filled nylon polyamide filter head mounting bracket which is ideal for aluminium boats and is impervious to fuel and corrosion.

The filter media sheds water instead of absorbing it. The filter head incorporates the mounting bracket.

• Suits outboard motors up to around 70 HP
• Suitable for 2 stroke and 4 stroke fuel - NOT diesel
• Filter capacity up to approx 180 litres per hour
• 10 micron spin-on filter element
• Removes 98% of small particles and water from fuel
• Clear easy-viewing bowl with screw drain plug
• Compact glass filled nylon polyamide mounting bracket head - only 80mm wide (excluding hose barbs) & 77mm deep
• 4 x 5/16" NPT threaded filter ports
• 2 x 5/16" NPT threaded plugs, 2 x 5/16" NPT x 8mm hose barbs & 2 x 5/16" NPT x 10mm hose barbs
• Replacement clear bowls and filter elements available
• Clamshell colour retail hang packaging of Complete unit
